Toyota Camry (XV70): Installation

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Front Bumper / Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

    Target Adjustment (Triangle Target):

    Click here

    Target Adjustment (Flat Surface Target):

    Click here

    Driving Adjustment:

    Click here

  • When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.

    Click here

PROCEDURE

1. INSTALL FRONT BUMPER ASSEMBLY

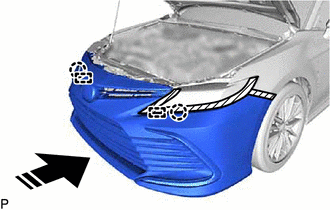

(a) Move the front bumper assembly into position and engage the 2 guides and 2 claws as shown in the illustration.

Install in this Direction

(b) Install the 4 bolts.

Torque:

7.5 N
