Toyota Camry (XV70): Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pump control ECU removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Battery terminal is disconnected/reconnected |
Perform steering sensor zero point calibration |
Lane Tracing Assist System |
|
|
Pre-collision System | |||
|
Memorize steering angle neutral point |
Parking Assist Monitor System |
| |
|
Panoramic View Monitor System |
|
CAUTION:
- Wear protective gloves. Sharp areas on the parts may injure your hands.

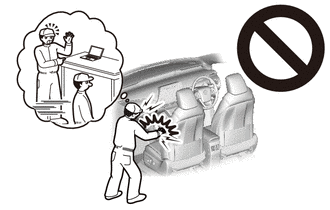

- Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Click here
.gif)
.png)

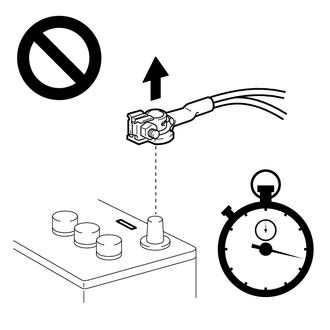

- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
.png)
- If an airbag deploys for any reason, it may cause a serious injury.
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Click here
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Click here
3. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)
Click here
4. REMOVE REAR SEAT HEADREST ASSEMBLY LH (w/ Removable Headrest)
Click here
5. REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)
Click here
6. REMOVE REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)
Click here
7. REMOVE REAR SEATBACK ASSEMBLY LH (for Fold Down Seat Type)
Click here
8. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH (for Fold Down Seat Type)
Click here
9. REMOVE REAR SIDE SEATBACK ASSEMBLY LH (for Fold Down Seat Type)
Click here
10. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH (for Fold Down Seat Type)
HINT:
Use the same procedure as for the LH side.
11. REMOVE REAR SIDE SEATBACK ASSEMBLY RH (for Fold Down Seat Type)
HINT:
Use the same procedure as for the LH side.
12. REMOVE CENTER STOP LIGHT SET
Click here
13. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH
Click here
14. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
15. REMOVE INNER ROOF SIDE GARNISH LH
Click here
16. REMOVE INNER ROOF SIDE GARNISH RH
HINT:
Use the same procedure as for the LH side.
17. REMOVE REAR SEAT SHOULDER BELT HOLE COVER
Click here
18. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
Click here
19. REMOVE ROOM PARTITION BOARD LH
Click here
20. REMOVE FUEL PUMP CONTROL ECU

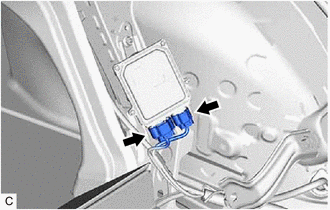

| (a) Disconnect the 2 fuel pump control ECU connectors. |
|
.png)

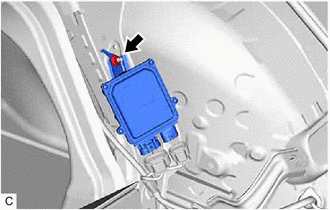

| (b) Remove the nut and fuel pump control ECU from the vehicle body. NOTICE: Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact. |
|
.png)
21. REMOVE FUEL PUMP CONTROL ECU BRACKET

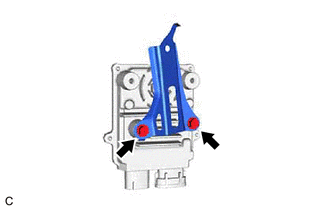

| (a) Remove the 2 bolts and fuel pump control ECU bracket from the fuel pump control ECU. |
|
.png)
