Toyota Camry (XV70): Removal

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / 2gr-fks (intake / Exhaust) / Vacuum Switching Valve (for Acis) / Removal

REMOVAL

PROCEDURE

1. REMOVE V-BANK COVER SUB-ASSEMBLY

Click here

2. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)

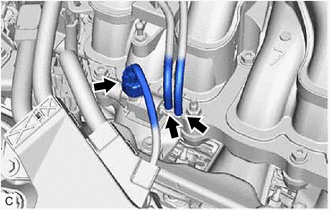

(a) Disconnect the No. 1 vacuum switching valve assembly (for ACIS) connector.

(b) Disconnect the 2 vacuum hose assemblies from the No. 1 vacuum switching valve assembly (for ACIS).

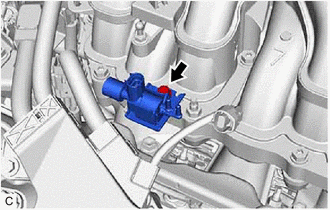

(c) Remove the bolt and No. 1 vacuum switching valve assembly (for ACIS) from the intake air surge tank assembly.
