Toyota Camry (XV70): Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear door belt moulding removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Tracing Assist System

Pre-collision System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

  • Rear door glass sub-assembly
  • Rear door glass run

Initialize power window control system

  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for A25A-FKS:

Click here

for 2GR-FKS:

Click here

3. REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY

Click here

4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

Click here

5. REMOVE REAR ARMREST ASSEMBLY

Click here

6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

Click here

7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

Click here

8. REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER

Click here

9. REMOVE REAR DOOR SERVICE HOLE COVER

Click here

10. REMOVE REAR DOOR NO. 1 VENT SEAL

Click here

11. REMOVE REAR DOOR PANEL PROTECTOR

Click here

12. REMOVE REAR DOOR GLASS RUN

Click here

13. DISCONNECT REAR DOOR WEATHERSTRIP

Click here

14. REMOVE REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY

Click here

15. REMOVE REAR DOOR QUARTER WINDOW GLASS

Click here

16. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

Click here

17. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

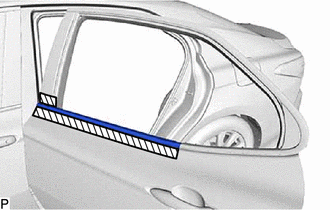

(a) Apply protective tape around the rear door belt moulding assembly as shown in the illustration.

Protective Tape

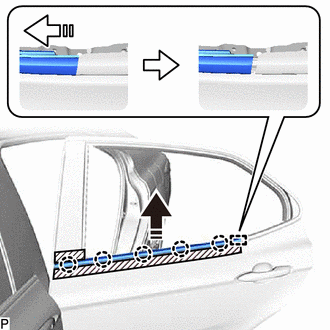

(b) Disengage the 5 claws and guide to remove the rear door belt moulding assembly as shown in the illustration.

Remove in this Direction (1)

Remove in this Direction (2)
