Toyota Camry (XV70): Right Rear Wheel Speed Sensor Circuit Voltage Out of Range (C05121C)

DESCRIPTION

Refer to DTC C051212

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C05121C

Right Rear Wheel Speed Sensor Circuit Voltage Out of Range

  • When the vehicle is being driven in a straight line at a speed of 20 km/h (12 mph) or more and VSC/TRAC has permission to control vehicle braking, one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 for between 9 and 72 seconds or more (period changes depending on vehicle conditions):
    • When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.
    • The value of the wheel speed is continuously the slowest.
    • When the wheel speed is less than 5 km/h (3 mph).
  • When the vehicle speed is less than 100 km/h (62 mph), one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 for between 9 and 72 seconds or more (period changes depending on vehicle conditions):
    • When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.
    • The value of the wheel speed is continuously the slowest.
    • When the wheel speed is less than 5 km/h (3 mph).
  • When the vehicle speed is 100 km/h (62 mph) or more, one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 for between 9 and 72 seconds or more (period changes depending on vehicle conditions):
    • When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.
    • The value of the wheel speed is continuously the slowest.
    • When the wheel speed is less than 5 km/h (3 mph).
  • Rear speed sensor RH (rear axle hub and bearing assembly RH)*3
  • Rear speed sensor RH*4
  • Rear speed sensor rotor RH (rear axle hub and bearing assembly RH)
  • Speed sensor installation
  • Tire wear
  • Tire pressure
  • Tire and wheel size

*1: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 15 % is permitted.

*2: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 16 km/h (10 mph) is permitted.

*3: for 2WD

*4: for AWD

DTC Detection Conditions: C05121C


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Diagnosis Condition

The vehicle is being driven in a straight line at a speed of 20 km/h (12 mph) or more and VSC/TRAC has permission to control vehicle braking.

-

-

-

The vehicle speed is less than 100 km/h (62 mph).

-

-

-

Malfunction Status

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the value of the wheel speed is continuously the slowest.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the wheel speed is less than 5 km/h (3 mph).

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 and the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 and the value of the wheel speed is continuously the slowest.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 and the wheel speed is less than 5 km/h (3 mph).

-

-

-

-

-

Detection Time

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

*1: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 15% is permitted.

*2: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 16 km/h (10 mph) is permitted.

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

DTC Detection Conditions: C05121C


Vehicle Condition

Pattern 7

Pattern 8

Pattern 9

Diagnosis Condition

The vehicle speed is 100 km/h (62 mph) or more.

Malfunction Status

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the value of the wheel speed is continuously the slowest.

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the wheel speed is less than 5 km/h (3 mph).

-

-

Detection Time

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Number of Trips

1 trip

1 trip

1 trip

*1: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 15% is permitted.

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

  • After replacing or removing and installing a speed sensor rotor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

  • DTC precaution

    Click here

    Procedure to clear warning lights (When not clearing DTCs)

    Procedure

    1. Repair or replacement.
    2. Turn the ignition switch to ON.
    3. Drive the vehicle at 11 km/h (7 mph) or more for 1 second or more to clear the warning lights.

PROCEDURE

1.

PRE-CHECK

(a) Check that all 4 tires are of correct size, are inflated to the correct pressure, and do not show excessive signs of wear.

Click here

HINT:

If a tire is deformed or an incorrectly sized tire or wheel is installed, this DTC may be stored.

NEXT

2.

CHECK FREEZE FRAME DATA (WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Trouble Codes.

(d) Select a DTC to display the Freeze Frame Data.

(e) Read the freeze frame data of DTC C05121C.

Chassis > Brake

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FR Wheel Speed

Front wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

FL Wheel Speed

Front wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RR Wheel Speed

Rear wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RL Wheel Speed

Rear wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > DTC(C05121C) > Freeze Frame Data

Tester Display

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

Result

Proceed to

The value of RR Wheel Speed is more than all other values.

A

The value of RR Wheel Speed is less than all other values.

B

The value of RR Wheel Speed is less than 5 km/h (3 mph).

C

B

GO TO STEP 4

C

GO TO STEP 7

A

3.

READ VALUE USING TECHSTREAM (WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FR Wheel Speed

Front wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

FL Wheel Speed

Front wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RR Wheel Speed

Rear wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RL Wheel Speed

Rear wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

(d) Start the engine.

(e) Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.

(f) Check the value of Wheel Speed.

OK:

The difference between the value of RR Wheel Speed and all other values is less than 6%.

HINT:

If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as wheelspin.

Result

Proceed to

OK

A

NG (for 2WD)

B

NG (for AWD)

C

A

USE SIMULATION METHOD TO CHECK

B

REPLACE REAR AXLE HUB AND BEARING ASSEMBLY RH

C

REPLACE REAR SPEED SENSOR RH

4.

READ VALUE USING TECHSTREAM (WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FR Wheel Speed

Front wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

FL Wheel Speed

Front wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RR Wheel Speed

Rear wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RL Wheel Speed

Rear wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

(d) Start the engine.

(e) Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.

(f) Check the value of Wheel Speed.

OK:

The difference between the value of RR Wheel Speed and all other values is less than 6%.

HINT:

If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as brake drag.

Result

Proceed to

OK

A

NG (for 2WD)

B

NG (for AWD)

C

A

USE SIMULATION METHOD TO CHECK

B

REPLACE REAR AXLE HUB AND BEARING ASSEMBLY RH

C

5.

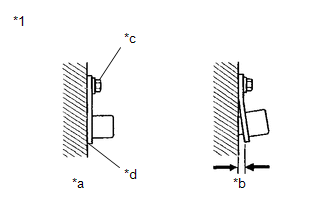

CHECK REAR SPEED SENSOR RH INSTALLATION

(a) Check the rear speed sensor RH installation.

OK:

There is no clearance between the rear speed sensor RH and the rear axle carrier RH.

The installation bolt is tightened properly.

Torque

8.5 N*m (87 kgf*cm, 75 in.*lbf)

*1

Rear Speed Sensor RH

*a

Correct

*b

Incorrect

*c

8.5 N*m

*d

No clearance

NG

REINSTALL OR REPLACE REAR SPEED SENSOR RH

OK

6.

CHECK REAR SPEED SENSOR ROTOR RH (CHECK FOR FOREIGN MATTER)

(a) Remove the component with the rear speed sensor rotor RH.

Click here

(b) Check the rear speed sensor rotor RH.

OK:

The rear speed sensor rotor RH is free of scratches, oil, and foreign matter.

NOTICE:

  • If there is oil or foreign matter on the rear speed sensor rotor RH, clean the rear speed sensor rotor RH.
  • Do not use parts cleaner when cleaning the rear speed sensor rotor RH.
  • If the rear speed sensor rotor RH is damaged, replace the rear axle hub and bearing assembly RH with a new one.

Result

Proceed to

OK

A

NG (The rear speed sensor rotor RH is damaged.)

B

NG (There is foreign matter on the rear speed sensor rotor RH.)

C

A

REPLACE REAR SPEED SENSOR RH

B

REPLACE REAR AXLE HUB AND BEARING ASSEMBLY RH

C

CLEAN REAR SPEED SENSOR ROTOR RH

7.

READ VALUE USING TECHSTREAM (RR WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

RR Wheel Speed

Rear wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

RR Wheel Speed

(d) Start the engine.

(e) Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.

(f) Check the value of RR Wheel Speed.

OK:

The value of RR Wheel Speed is 5 km/h (3 mph) or more.

HINT:

If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as wheelspin, brake drag or wheel lockup.

When a DTC is stored during operation of ABS or TRAC, the system also stores vehicle control history (RoB) that can be guessed the vehicle conditions.

Click here

Result

Proceed to

OK

A

NG (for 2WD)

B

NG (for AWD)

C

A

USE SIMULATION METHOD TO CHECK

B

REPLACE REAR AXLE HUB AND BEARING ASSEMBLY RH

C

8.

CHECK REAR SPEED SENSOR RH INSTALLATION

(a) Check the rear speed sensor RH installation.

OK:

There is no clearance between the rear speed sensor RH and the rear axle carrier RH.

The installation bolt is tightened properly.

Torque

8.5 N*m (87 kgf*cm, 75 in.*lbf)

*1

Rear Speed Sensor RH

*a

Correct

*b

Incorrect

*c

8.5 N*m

*d

No clearance

OK

REPLACE REAR SPEED SENSOR RH

NG

REINSTALL OR REPLACE REAR SPEED SENSOR RH

    READ NEXT:

     Right Rear Wheel Speed Sensor Circuit Intermittent (C05121F)

    DESCRIPTION Refer to DTC C051212 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C05121F Right Rear Wheel Speed Sensor Circuit Intermittent

     Right Rear Wheel Speed Sensor Signal Stuck Low (C051223)

    DESCRIPTION Refer to DTC C051212 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C051223 Right Rear Wheel Speed Sensor Signal Stuck Low W

     Right Rear Wheel Speed Sensor Signal Stuck High (C051224)

    DESCRIPTION Refer to DTC C051212 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C051224 Right Rear Wheel Speed Sensor Signal Stuck High The s

    SEE MORE:

     Installation

    INSTALLATION PROCEDURE 1. INSTALL V-RIBBED BELT HINT: When reusing the V-ribbed belt, check the ribs and back of the V-ribbed belt for wear and cracks. If wear or a crack that reaches the core (at more than 1 point) is found, replace the V-ribbed belt. (a) Set the V-ribbed belt onto each pul

     Vehicle Lift And Support Locations

    VEHICLE LIFT AND SUPPORT LOCATIONS NOTICE ABOUT VEHICLE CONDITION WHEN RAISING VEHICLE (a) The vehicle must be unloaded before jacking up or raising the vehicle. Never jack up or raise a heavily loaded vehicle. (b) When removing any heavy components like the engine or transmission, the vehicle c

    © 2023-2024 Copyright www.tocamry.com
