Toyota Camry (XV70): System Diagram

Toyota Camry Repair Manual XV70 (2018-2024) / Drivetrain / Ua80e (automatic Transmission / Transaxle) / Automatic Transaxle System / System Diagram

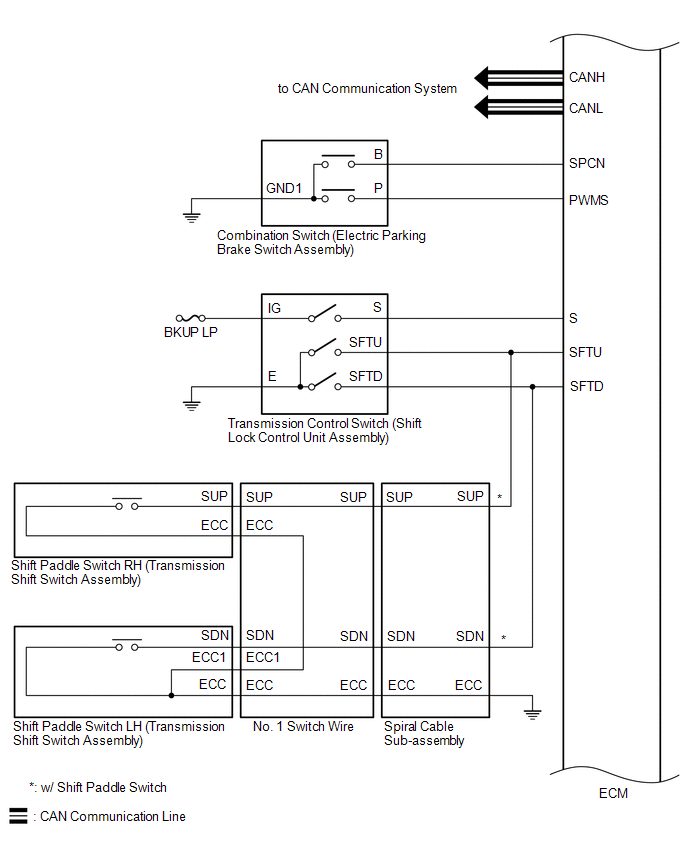

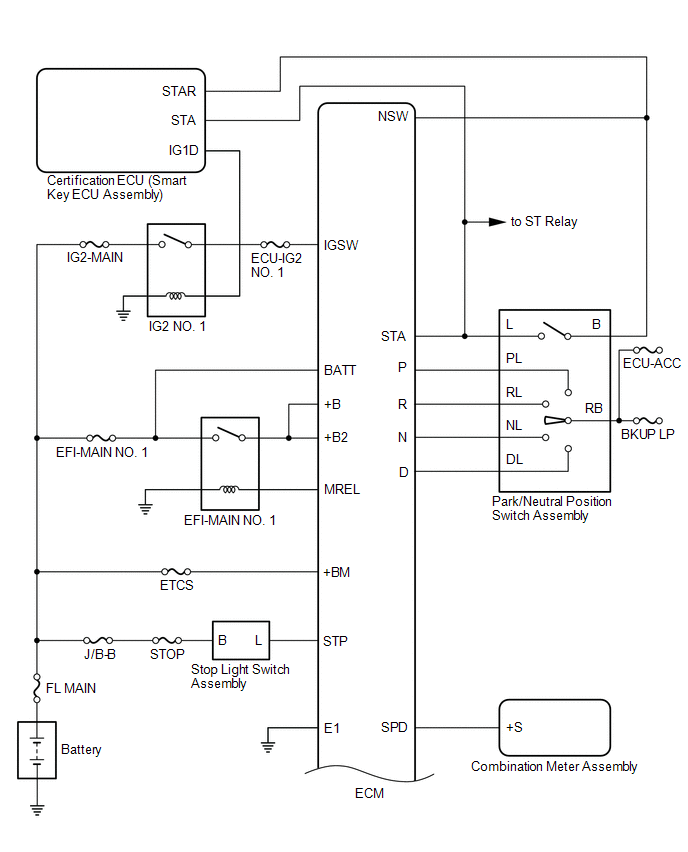

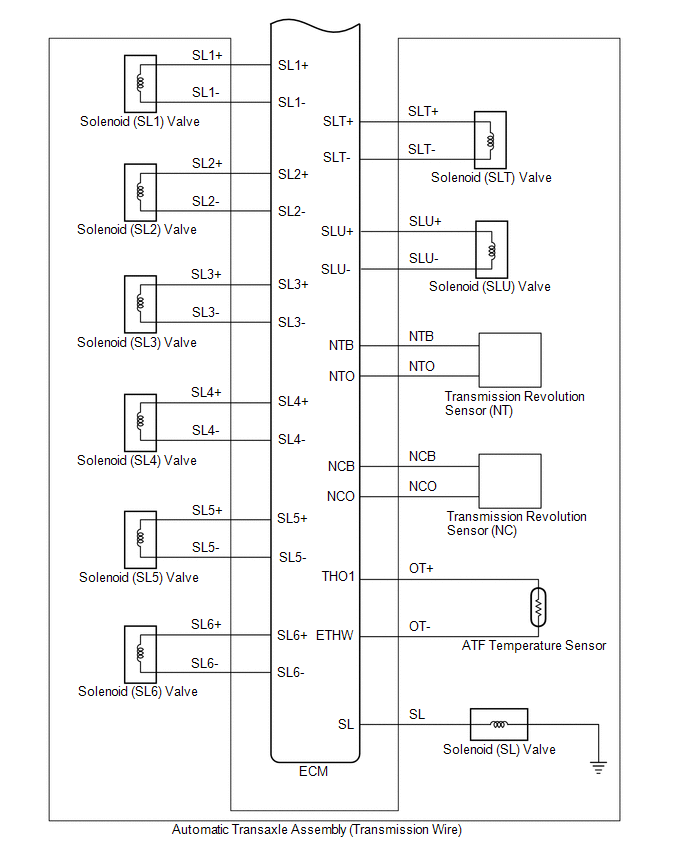

SYSTEM DIAGRAM
