Toyota Camry (XV70): Components
COMPONENTS
ILLUSTRATION
.png)
|
*A | for Fold Down Seat Type |
- | - |
|
*1 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
*2 | REAR SEAT CUSHION ASSEMBLY |
|
*3 | REAR SEAT CUSHION LOCK HOOK |
*4 | REAR SEAT INNER BELT ASSEMBLY RH |
|
*5 | WASHER |
- | - |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
● | Non-reusable part |
ILLUSTRATION
.png)
|
*A | for Fold Down Seat Type |
*B | w/o Removable Headrest |
|
*1 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
*2 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
|
*3 | REAR SEATBACK ASSEMBLY LH |
*4 | REAR SIDE SEATBACK ASSEMBLY LH |
|
*5 | REAR SIDE SEATBACK ASSEMBLY RH |
- | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- | - |
ILLUSTRATION
.png)
|
*A | for Fold Down Seat Type |
*B | w/ Removable Headrest |
|
*1 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
*2 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
|
*3 | REAR SEAT HEADREST ASSEMBLY LH |
*4 | REAR SEATBACK ASSEMBLY LH |
|
*5 | REAR SIDE SEATBACK ASSEMBLY LH |
*6 | REAR SIDE SEATBACK ASSEMBLY RH |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- | - |
ILLUSTRATION
.png)
|
*1 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
*2 | REAR SEAT OUTER BELT ASSEMBLY LH |
|
*3 | REAR SEAT OUTER BELT ASSEMBLY RH |
*4 | REAR SEAT SHOULDER BELT HOLE COVER |
|
*5 | INNER ROOF SIDE GARNISH LH |
*6 | INNER ROOF SIDE GARNISH RH |
|
*7 | ROOM PARTITION BOARD LH |
- | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- | - |
ILLUSTRATION
.png)
|

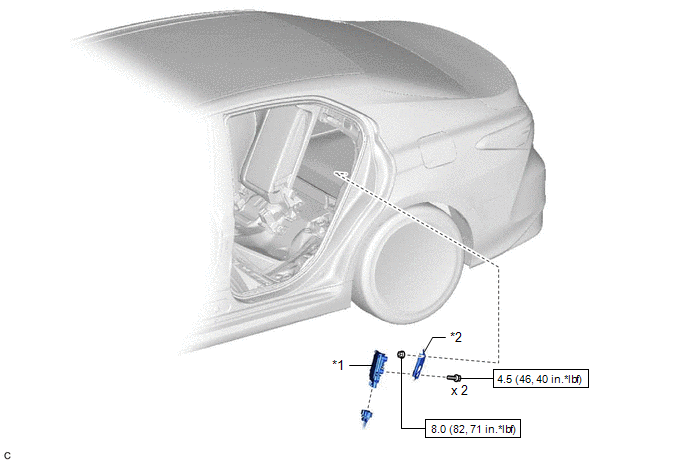

*1 | FUEL PUMP CONTROL ECU |
*2 | FUEL PUMP CONTROL ECU BRACKET |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
