Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / 2gr-fks (intake / Exhaust) / Vacuum Switching Valve (for Acis) / Components

COMPONENTS

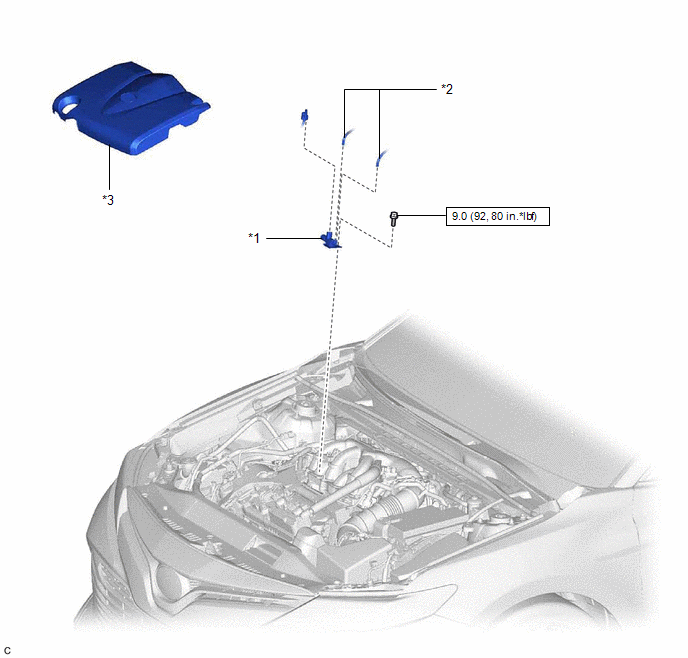

ILLUSTRATION

*1

NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)

*2

VACUUM HOSE SUB-ASSEMBLY

*3

V-BANK COVER SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
