COMPONENTS

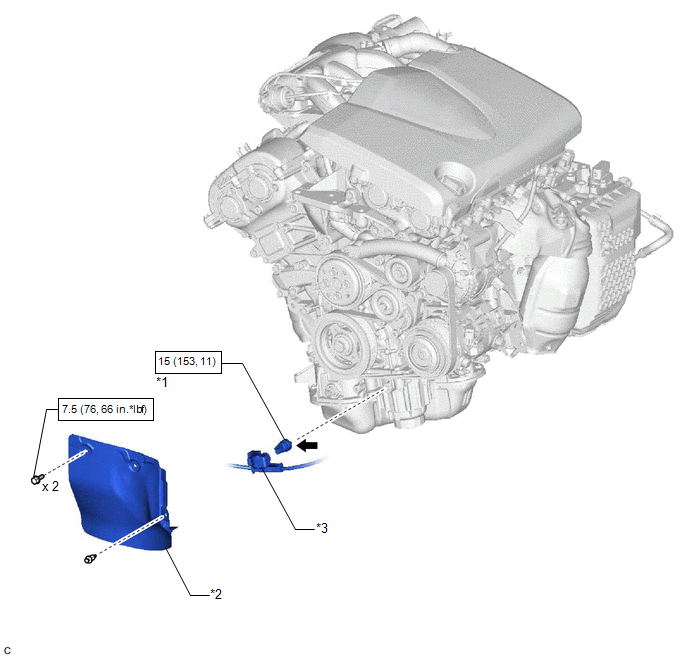

ILLUSTRATION

*1

ENGINE OIL PRESSURE SWITCH ASSEMBLY

*2

FRONT FENDER APRON SEAL RH

*3

WIRE HARNESS PROTECTOR

-

-

N*m (kgf*cm, ft*lbf): Specified torque

Adhesive 1344

★

Precoated part

-

-

    READ NEXT:

     Removal

    REMOVAL PROCEDURE 1. REMOVE FRONT FENDER APRON SEAL RH Click here 2. DRAIN ENGINE OIL Click here 3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY (a) Disengage the clamp to disco

     Inspection

    INSPECTION PROCEDURE 1. INSPECT ENGINE OIL PRESSURE SWITCH ASSEMBLY (a) Disengage the clamp to disconnect the wire harness protector. *1 Wire Harness Protector

     Installation

    INSTALLATION PROCEDURE 1. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY (a) Apply adhesive to 2 or 3 threads of the engine oil pressure switch assembly. Adhesive: Toyota Genuine Adhesive 1344,
