Toyota Camry (XV70): Components
COMPONENTS

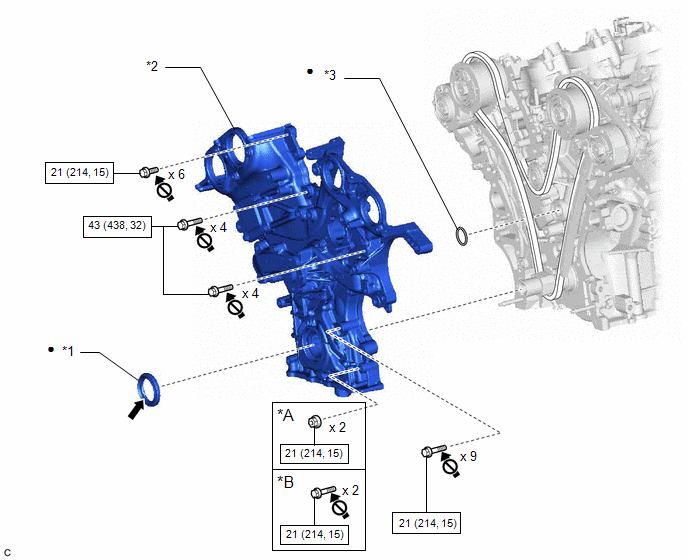

ILLUSTRATION
.png)
|
*A | w/ Stud Bolt |
*B | w/o Stud Bolt |
|
*1 | TIMING CHAIN CASE OIL SEAL |
*2 | TIMING CHAIN COVER ASSEMBLY |
|
*3 | OIL PUMP GASKET |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
.png) |
MP Grease |
.png) |
Do not apply lubricants to the threaded parts |

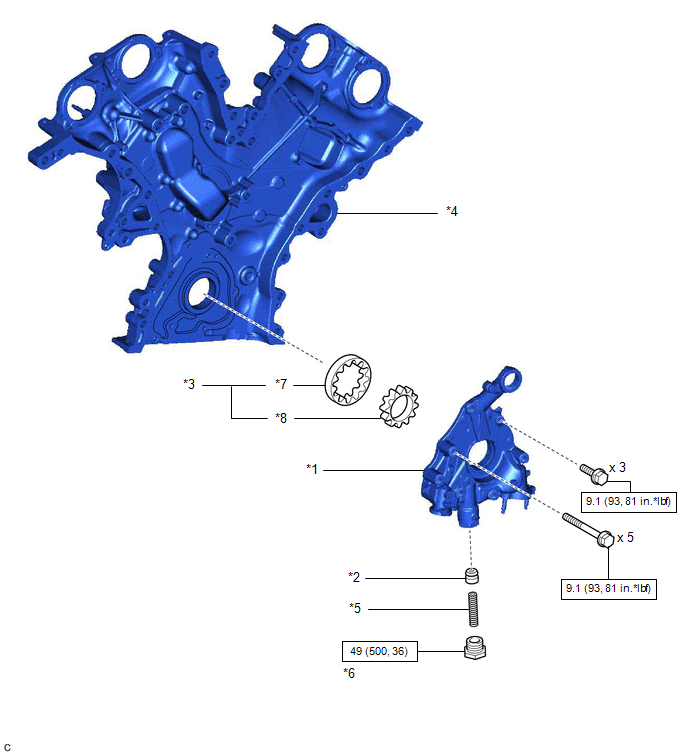

ILLUSTRATION
.png)
|
*1 | OIL PUMP COVER |
*2 | OIL PUMP RELIEF VALVE |
|
*3 | OIL PUMP ROTOR SET |
*4 | TIMING CHAIN COVER ASSEMBLY |
|
*5 | OIL PUMP RELIEF VALVE SPRING |
*6 | OIL PUMP RELIEF VALVE PLUG |
|
*7 | DRIVEN ROTOR |
*8 | DRIVE ROTOR |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
