Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / 2gr-fks (starting) / Starter / Components

COMPONENTS

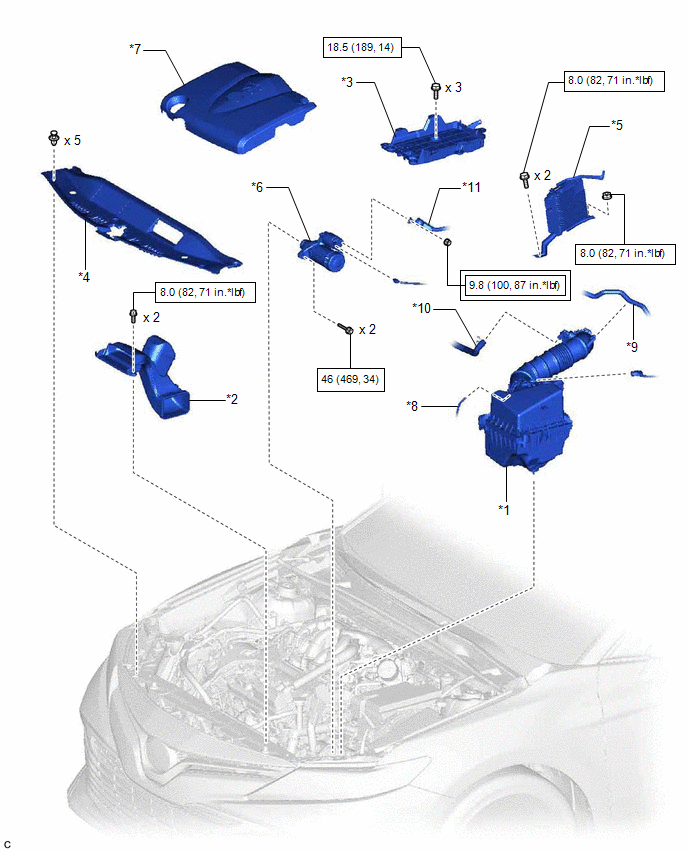

ILLUSTRATION

*1

AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

*2

INLET AIR CLEANER ASSEMBLY

*3

BATTERY CLAMP SUB-ASSEMBLY

*4

COOL AIR INTAKE DUCT SEAL

*5

ECM

*6

STARTER ASSEMBLY

*7

V-BANK COVER SUB-ASSEMBLY

*8

VACUUM HOSE

*9

NO. 1 FUEL VAPOR FEED HOSE

*10

NO. 2 VENTILATION HOSE

*11

ENGINE WIRE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

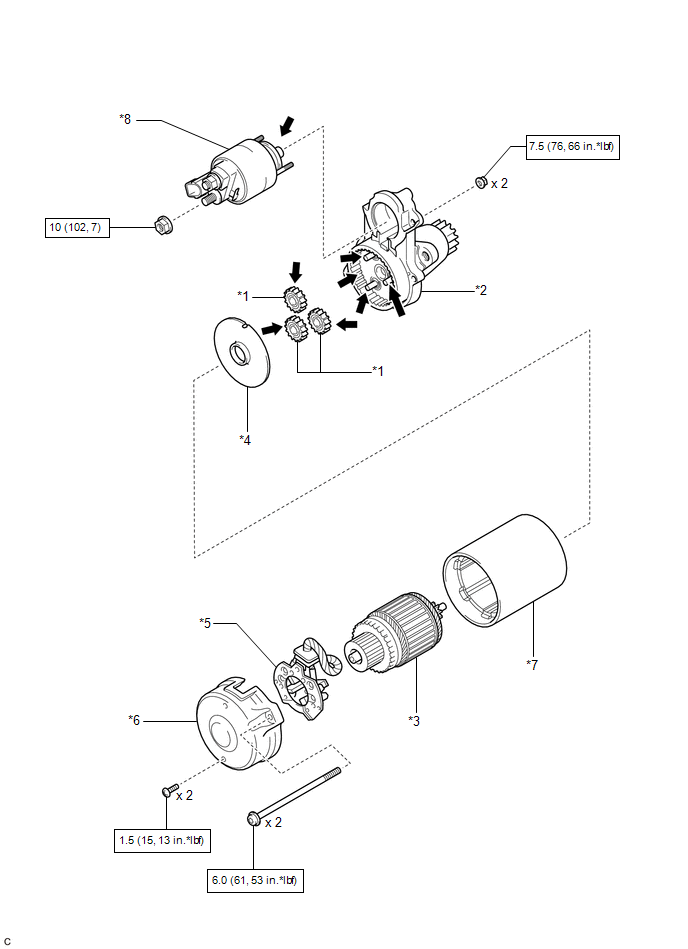

ILLUSTRATION

*1

PLANETARY GEAR

*2

REPAIR SERVICE STARTER KIT

*3

STARTER ARMATURE ASSEMBLY

*4

STARTER ARMATURE PLATE

*5

STARTER BRUSH HOLDER ASSEMBLY

*6

STARTER COMMUTATOR END FRAME ASSEMBLY

*7

STARTER YOKE ASSEMBLY

*8

MAGNET STARTER SWITCH ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

High-temperature Grease
