Toyota Camry (XV70): Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced starter assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Battery terminal is disconnected/reconnected |
Perform steering sensor zero point calibration |
Lane Tracing Assist System |
|
|
Pre-collision System | |||
|
Memorize steering angle neutral point |
Parking assist monitor system |
| |
|
Panoramic view monitor system |
|
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Click here .gif)
2. REMOVE BATTERY
Click here
3. REMOVE COOL AIR INTAKE DUCT SEAL
Click here
4. REMOVE V-BANK COVER SUB-ASSEMBLY
Click here
5. REMOVE INLET AIR CLEANER ASSEMBLY
Click here
6. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
Click here
7. REMOVE ECM
Click here
8. REMOVE BATTERY CLAMP SUB-ASSEMBLY
Click here
9. REMOVE STARTER ASSEMBLY

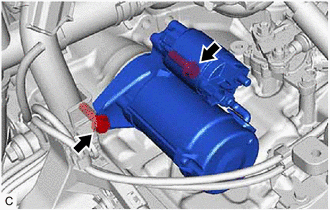

| (a) Disconnect the starter assembly connector. |
|
.png)

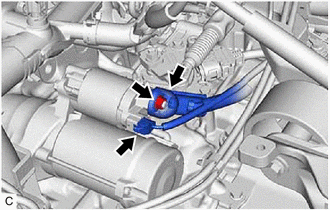

(b) Open the terminal cap.
(c) Remove the nut and disconnect the engine wire from the terminal 30.
| (d) Remove the 2 bolts and starter assembly. |
|
.png)
