Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / A25a-fks (cooling) / Flow Shutting Valve (for Atf) / Components

COMPONENTS

ILLUSTRATION

*A

for TMC made

-

-

*1

NO. 1 ENGINE UNDER COVER

*2

NO. 2 ENGINE UNDER COVER ASSEMBLY

*3

FRONT WHEEL OPENING EXTENSION PAD LH

*4

FRONT WHEEL OPENING EXTENSION PAD RH

*5

FRONT FENDER APRON SEAL LH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*A

for TMMK Made

-

-

*1

NO. 1 ENGINE UNDER COVER

*2

NO. 2 ENGINE UNDER COVER ASSEMBLY

*3

FRONT WHEEL OPENING EXTENSION PAD LH

*4

FRONT WHEEL OPENING EXTENSION PAD RH

*5

FRONT FENDER APRON SEAL LH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

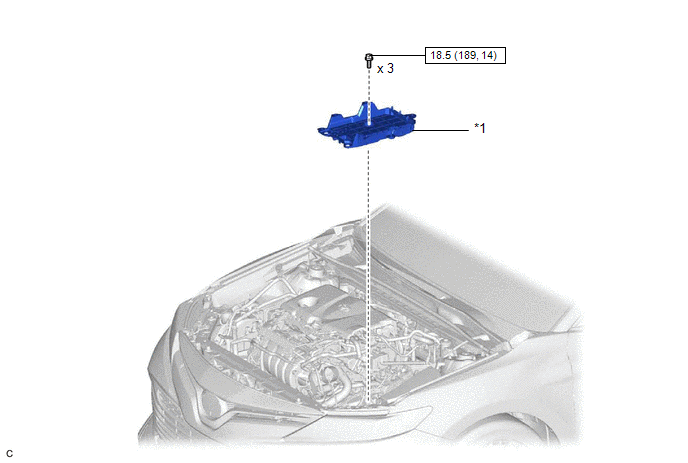

ILLUSTRATION

*1

BATTERY CLAMP SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

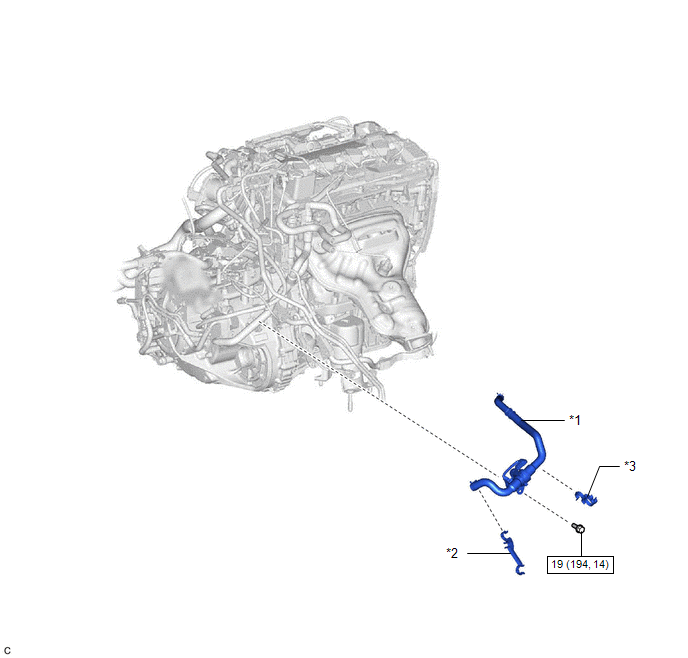

ILLUSTRATION

*1

FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)

*2

TRANSMISSION BREATHER CLAMP

*3

HOSE CLAMP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
