Toyota Camry (XV70): Installation

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / A25a-fks (cooling) / Flow Shutting Valve (for Atf) / Installation

INSTALLATION

PROCEDURE

1. INSTALL FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)

(a) Install the flow shutting valve (No. 1 water by-pass hose) with the bolt.

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

(b) Connect the flow shutting valve connector.

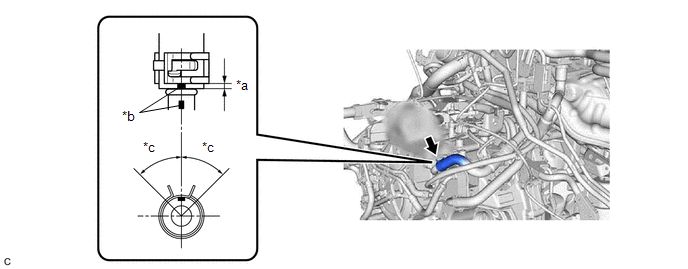

(c) Connect the flow shutting valve (No. 1 water by-pass hose) to the transmission oil cooler and slide the clip to secure it.

*a

2 to 7 mm (0.0787 to 0.276 in.)

*b

Paint Mark

*c

45° (Tabs of Clip Installation Area)

-

-

NOTICE:

  • Make sure to slide the flow shutting valve (No. 1 water by-pass hose) until it contacts the hose stopper of the transmission oil cooler.
  • Make sure to align the paint mark of the flow shutting valve (No. 1 water by-pass hose) with the paint mark of the transmission oil cooler.
  • Make sure that the tabs of the clip are within the area shown in the illustration.

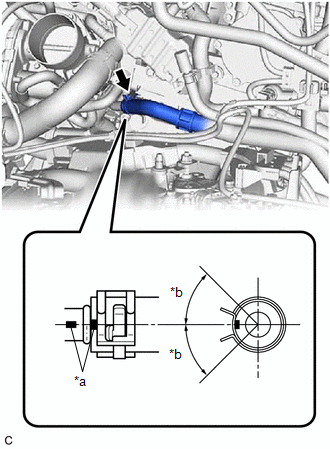

(d) Connect the flow shutting valve (No. 1 water by-pass hose) to the water outlet and slide the clip to secure it.

NOTICE:

  • Make sure to slide the flow shutting valve (No. 1 water by-pass hose until it contacts the hose) stopper of the water outlet.
  • Make sure to align the paint mark of the flow shutting valve (No. 1 water by-pass hose) with the paint mark of the water outlet.
  • Make sure that the tabs of the clip are within the area shown in the illustration.

*a

Paint Mark

*b

45° (Tabs of Clip Installation Area)

(e) Engage the 2 clamps to connect the flow shutting valve (No. 1 water by-pass hose) and transmission breather hose to the hose clamp.

(f) Engage the 3 clamps to install the hose clamp.

(g) Engage the 3 clamps to install the transmission breather clamp.

2. INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click here

3. INSTALL BATTERY

Click here

4. INSTALL ECM

Click here

5. ADD ENGINE COOLANT

Click here

6. INSPECT FOR COOLANT LEAK

Click here

7. INSTALL FRONT FENDER APRON SEAL LH

Click here

8. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

9. INSTALL NO. 1 ENGINE UNDER COVER

Click here

10. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

Click here

11. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

Click here

12. INSTALL FRONT WHEEL LH

Click here
