COMPONENTS

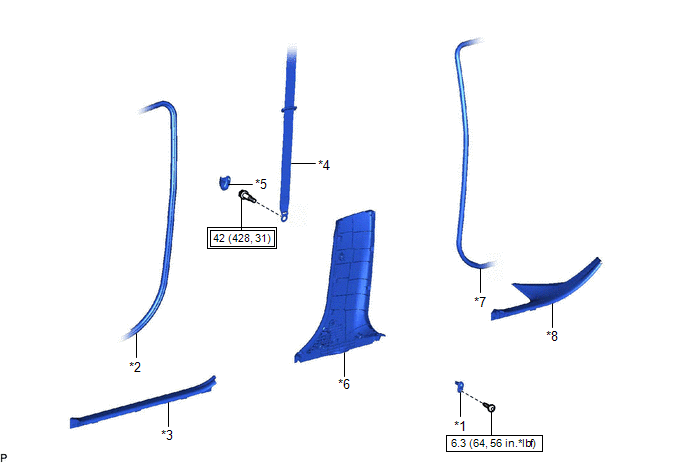

ILLUSTRATION

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP

*3

FRONT DOOR SCUFF PLATE

*4

FRONT SEAT OUTER BELT ASSEMBLY

*5

LAP BELT OUTER ANCHOR COVER

*6

LOWER CENTER PILLAR GARNISH

*7

REAR DOOR OPENING TRIM WEATHERSTRIP

*8

REAR DOOR SCUFF PLATE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque
