Toyota Camry (XV70): Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE
Click here .gif)
2. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
Click here
3. REMOVE REAR DOOR SCUFF PLATE
Click here
4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
Click here
5. REMOVE LAP BELT OUTER ANCHOR COVER
Click here
6. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
Click here
7. REMOVE LOWER CENTER PILLAR GARNISH
Click here
8. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

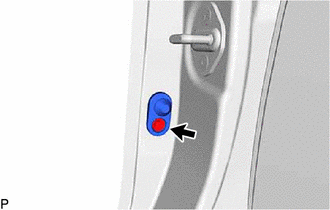

| (a) Using a T30 "TORX" socket wrench, remove the screw. |
|
(b) Disconnect the connector to remove the front door courtesy light switch assembly.
