Toyota Camry (XV70): Customize Parameters
CUSTOMIZE PARAMETERS
CUSTOMIZE LIGHTING SYSTEM (EXT)
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
HINT:
The following items can be customized.
(a) Customizing with the Techstream
(1) Connect the Techstream to the DLC3.
(2) Turn the ignition switch to ON.
(3) Turn the Techstream on.
(4) Enter the following menus: Customize Setting / Light Control, Warning or Illuminated Entry.
(5) Select the setting by referring to the table below.
Light Control|
Tester Display | Description |
Default | Setting |
ECU |
|---|---|---|---|---|
| Disp Ex ON Sen |
Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*A |
NORMAL | 000:NORMAL,001:DARK2,010:DARK1,011:LIGHT1,100:LIGHT2 |
Main Body ECU (Multiplex Network Body ECU) |
|
Disp Ex OFF Sen | Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*B |
NORMAL | 000:NORMAL,001:DARK2,010:DARK1,011:LIGHT1,100:LIGHT2 |
Main Body ECU (Multiplex Network Body ECU) |
|
Light Auto OFF Delay |
Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all of doors with the low beam headlights on. |
30 s | 00:OFF,01:30 s,10:60 s,11:90 s |
Main Body ECU (Multiplex Network Body ECU) |
|
Sensitivity | Adjusts the sensitivity of the automatic light control system.*C |
Normal | 000:Normal,001:Dark2,010:Dark1,011:Light1,100:Light2 |
Main Body ECU (Multiplex Network Body ECU) |
|
DRL Function | Turns the DRL function on/off.* |
ON | 0:OFF,1:ON |
Main Body ECU (Multiplex Network Body ECU) |
|
Headlight in Conjunction with Wiper |
Turns the low beam headlights on/off according to wiper operation. |
ON | 0:OFF,1:ON |
Main Body ECU (Multiplex Network Body ECU) |
|
Tail Remind Buzzer Function |
Sounds a buzzer when the driver door is opened with the light control switch in the tail or head position. |
ON | 0:OFF,1:ON |
Main Body ECU (Multiplex Network Body ECU) |
- *: for vehicles with customize setting "DRL Function"
HINT:
The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

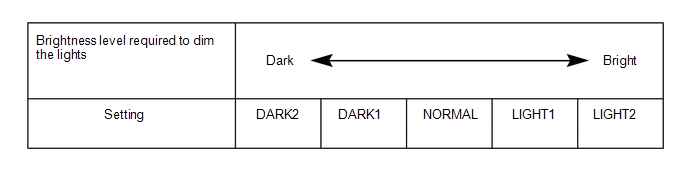

- *A

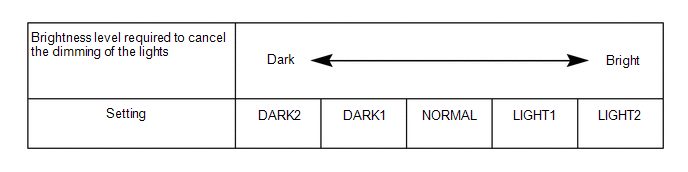

- *B

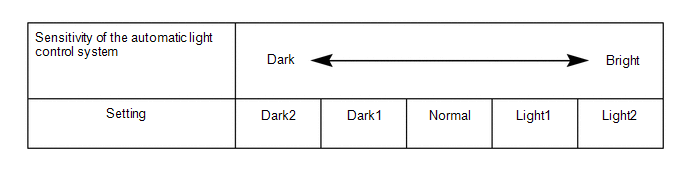

- *C
|
Tester Display | Description |
Default | Setting |
ECU |
|---|---|---|---|---|
| Lane Change Flashing Times Adjust |
Function to change the lane change flashing times. |
3 | $00:OFF,$01:3,$02:4,$03:5,$04:6,$05:7 |
Combination Meter Assembly |
|
Tester Display | Description |
Default | Setting |
ECU |
|---|---|---|---|---|
| Mirr-Foot-Lgt Approached/Exterior Light Approached |
Illuminates the door mirror foot lights when a key enters any actuation area around the doors.* |
ON | 0:OFF,1:ON |
Main Body ECU (Multiplex Network Body ECU) |
|
Mirr-Foot-Lgt Unlocked/Exterior Light Unlocked |
Illuminates the door mirror foot lights when the doors are unlocked using a mechanical key or door control transmitter.* |
ON | 0:OFF,1:ON |
Main Body ECU (Multiplex Network Body ECU) |
- *: Although this item is displayed on the Techstream, it is not applicable to this vehicle.
(b) Customizing with the multi-display
(1) Turn the ignition switch to ON.
(2) Enter the following menus: MENU / Setup / Vehicle / Vehicle Customization / Lights Settings.
(3) Select the setting by referring to the table below.
|
Display | Default |
Content | Setting |
Relevant ECU |
|---|---|---|---|---|
|
Headlights Auto-on Sensitivity |
0 | Adjusts the sensitivity of the automatic light control system.*A |
-2, -1, 0, +1 or +2 |
Main Body ECU (Multiplex Network Body ECU) |
|
Headlights Auto-off Timer |
30 sec. | Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all of doors with the low beam headlights on. |
Off, 30 sec., 60 sec. or 90 sec. |
Main Body ECU (Multiplex Network Body ECU) |
|
Daytime Running Lights* |
On | Turns the DRL function on/off. |
On or Off | Main Body ECU (Multiplex Network Body ECU) |
- *: for vehicles with customize setting "Daytime Running Lights"
HINT:
The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

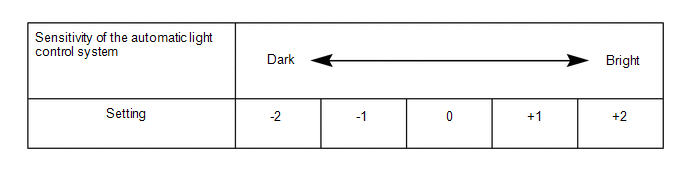

- *A
