Toyota Camry (XV70): Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE OIL PUMP RELIEF VALVE

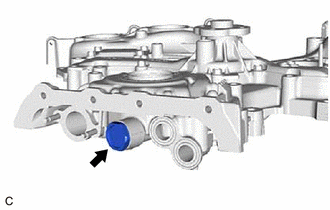

| (a) Using a 27 mm socket wrench, remove the oil pump relief valve plug from the oil pump cover. |
|
(b) Remove the oil pump relief valve spring and oil pump relief valve from the valve hole.
2. REMOVE OIL PUMP COVER
|

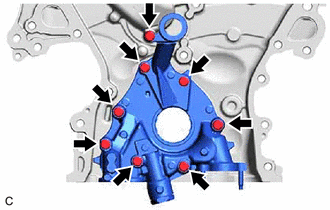

(a) Remove the 8 bolts and oil pump cover from the timing chain cover assembly. |
|
3. REMOVE OIL PUMP ROTOR SET

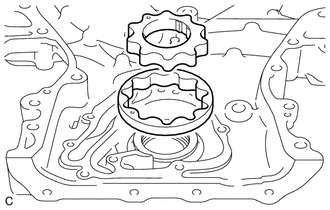

| (a) Remove the drive rotor and driven rotor from the timing chain cover assembly. |
|
