Toyota Camry (XV70): Reassembly
REASSEMBLY
PROCEDURE

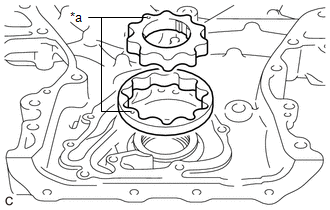

1. INSTALL OIL PUMP ROTOR SET
(a) Coat the drive rotor and driven rotor with engine oil and place them into the timing chain cover assembly with the rotor marks facing up. Check that the rotors rotate smoothly. |
|

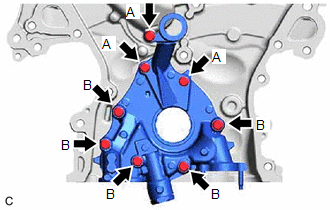

2. INSTALL OIL PUMP COVER
(a) Install the oil pump cover to the timing chain cover assembly with the 8 bolts.
Torque: 9.1 N·m {93 kgf·cm, 81 in·lbf} Bolt Length:
Item | Length |
Bolt (A) | 22 mm (0.866 in.) |
Bolt (B) | 40 mm (1.57 in.) | |
|

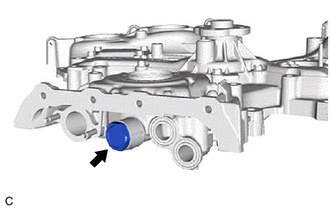

3. INSTALL OIL PUMP RELIEF VALVE
(a) Coat the oil pump relief valve with engine oil.
(b) Insert the oil pump relief valve and oil pump relief valve spring into the valve hole.
(c) Using a 27 mm socket wrench, install the oil pump relief valve plug to the oil pump cover.
Torque: 49 N·m {500 kgf·cm, 36 ft·lbf} | |
