Toyota Camry (XV70): Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE HOOD TO RADIATOR SUPPORT SEAL
| (a) Using a clip remover, disengage the 10 hood to radiator support seal clips to remove the hood to radiator support seal. |
|
(b) Remove the 10 hood to radiator support seal clips from the hood to radiator support seal.
2. REMOVE HOOD INSULATOR

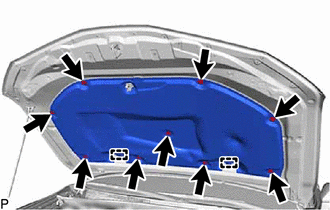

| (a) Using a clip remover, remove the 9 hood insulator clips. |
|
(b) Disengage the 2 guides to remove the hood insulator.
3. REMOVE WASHER NOZZLE SUB-ASSEMBLY
Click here .gif)
4. DISCONNECT WASHER HOSE ASSEMBLY
| (a) Disengage the 5 clamps. |
|
(b) Disengage the grommet and disconnect the washer hose assembly.
5. REMOVE HOOD STAY HOLDER

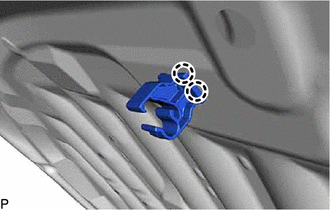

| (a) Disengage the 2 claws to remove the hood stay holder. |
|
6. REMOVE HOOD SUPPORT ASSEMBLY

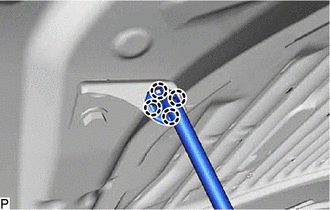

| (a) Disengage the 4 claws to remove the hood support assembly. |
|
7. REMOVE HOOD STAY BRACKET RH

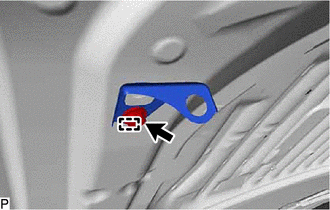

| (a) Remove the bolt. |
|
(b) Disengage the guide to remove the hood stay bracket RH.
