Toyota Camry (XV70): Reassembly
REASSEMBLY
PROCEDURE
1. INSTALL HOOD STAY BRACKET RH
| (a) Engage the guide. |
|
.png)
(b) Install the hood stay bracket RH with the bolt.

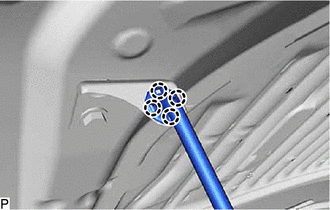

2. INSTALL HOOD SUPPORT ASSEMBLY
| (a) Engage the 4 claws to install the hood support assembly. |
|
.png)
3. INSTALL HOOD STAY HOLDER
| (a) Engage the 2 claws to install the hood stay holder. |
|
.png)

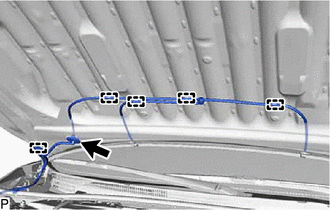

4. CONNECT WASHER HOSE ASSEMBLY
| (a) Engage the grommet. |
|
.png)
(b) Engage the 5 clamps to connect the washer hose assembly.
5. INSTALL WASHER NOZZLE SUB-ASSEMBLY
Click here .gif)
6. INSPECT WASHER NOZZLE SUB-ASSEMBLY
Click here
7. ADJUST WASHER NOZZLE SUB-ASSEMBLY
Click here

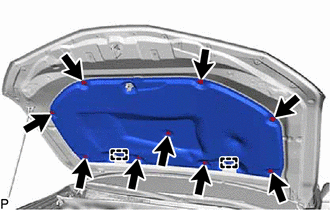

8. INSTALL HOOD INSULATOR
| (a) Engage the 2 guides. |
|
.png)
(b) Install the hood insulator with 9 new hood insulator clips.
9. INSTALL HOOD TO RADIATOR SUPPORT SEAL
| (a) Install the hood to radiator support seal with 10 new hood to radiator support seal clips. |
|
.png)
