Toyota Camry (XV70): Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.

Click here

PROCEDURE

1. INSTALL REAR BUMPER ASSEMBLY

(a) w/ Intuitive Parking Assist System:

(1) Connect the connector.

(b) Engage the 2 guides and 4 claws as shown in the illustration.

Install in this Direction

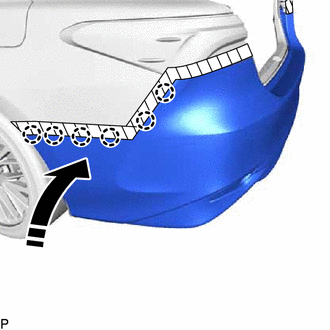

(c) Engage the 6 claws as shown in the illustration.

Install in this Direction

HINT:

Use the same procedure for the RH side and LH side.

(d) Install the 2 screws.

(e) for Single Type:

(1) Install the rear bumper assembly with the 11 clips.

(f) for Dual Type:

(1) Install the rear bumper assembly with the 10 clips.

2. INSTALL REAR COMBINATION LIGHT COVER LH

Click here

3. INSTALL REAR COMBINATION LIGHT COVER RH

HINT:

Use the same procedure as for the LH side.
