Toyota Camry (XV70): Installation
Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Lighting (ext) / Rear Light Assembly / Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL REAR LIGHT ASSEMBLY
(a) for Bulb Type Back-up Light:
| (1) Engage the clip. |
|

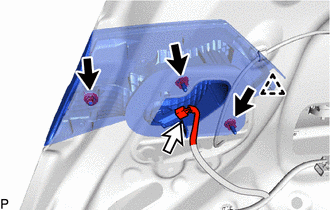

(2) Install the rear light assembly with the 3 nuts.
Torque:
7.0 N
