Toyota Camry (XV70): Operation not Accepted Even If Air Conditioning Switch is Operated

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Heating / Air Conditioning / Air Conditioning System (for Manual Air Conditioning System) / Operation not Accepted Even If Air Conditioning Switch is Operated

DESCRIPTION

If the air conditioning system cannot be operated using the air conditioning control assembly, the following suspected areas may be the cause.

Symptom

Factor

Air conditioning system cannot be operated using air conditioning control assembly

  • (With the exception of the switch indicators, no inputs are reflected when other switches operated)
  • LIN communication malfunction between air conditioning amplifier assembly and air conditioning control assembly
  • Short to +B or ground in air conditioning amplifier assembly circuit
  • Air conditioning amplifier assembly malfunction
  • Air conditioning control assembly malfunction

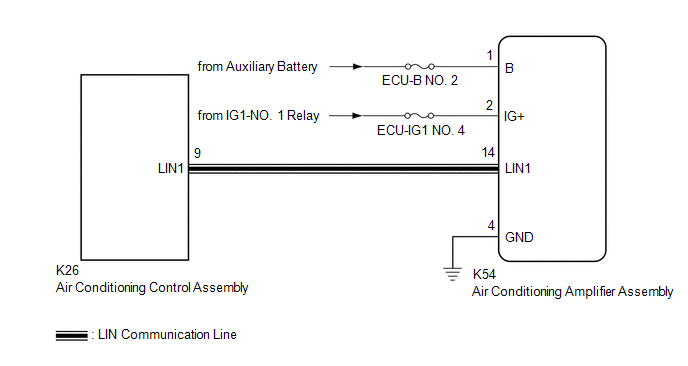

WIRING DIAGRAM

PROCEDURE

1.

CHECK FOR DTC

(a) Check for DTCs.

Body Electrical > Air Conditioner > Trouble Codes

OK:

DTC B14B2 is not output.

NG

GO TO DTC B14B2

OK

2.

CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - BATTERY AND BODY GROUND)

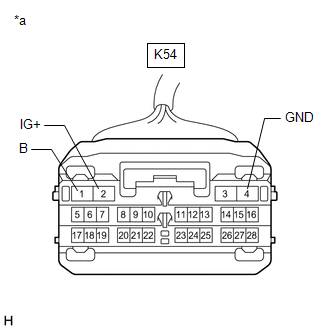

*a

Front view of wire harness connector

(to Air Conditioning Amplifier Assembly)

(a) Disconnect the K54 air conditioning amplifier assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K54-4 (GND) - Body ground

Always

Below 1 ?

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

K54-1 (B) - Body ground

Always

11 to 14 V

K54-2 (IG+) - Body ground

Ignition switch ON

11 to 14 V

Ignition switch off

Below 1 V
OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
