PARTS LOCATION

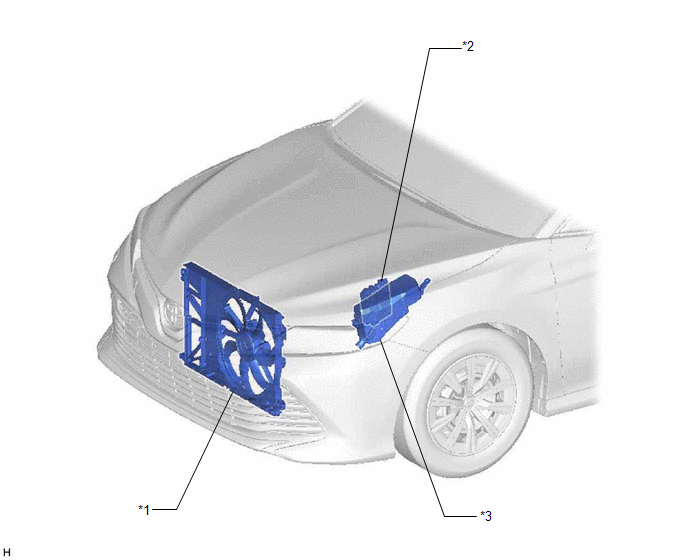

ILLUSTRATION
|
*1 | FAN WITH MOTOR ASSEMBLY - COOLING FAN MOTOR - COOLING FAN ECU | *2 |
ECM |
| *3 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 1 RELAY |
- | - |
