Toyota Camry (XV70): Removal

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Tracing Assist System

Pre-collision system

Memorize steering angle neutral point

Parking assist monitor system

Panoramic view monitor system

Replacement of ECM

Vehicle Identification Number (VIN) registration

MIL comes on

ECU communication ID registration (Immobiliser system)

Engine start function

*1

*2

Replacement of ECM

(If possible, read the transaxle compensation code from the previous ECM)

1. Reset memory*3
2. Transfer transaxle compensation code
3. Perform road test to allow ECM to learn

• Large shift shock
• Deterioration of fuel efficiency

for UB80E Initialization

for UB80E Registration

for UB80F Initialization

for UB80F Registration

Replacement of ECM

(If impossible, read the transaxle compensation code from the previous ECM)

1. Reset memory*3
2. Reset transaxle compensation code
3. Perform road test to allow ECM to learn

Replacement of ECM*1

Code registration

• Wireless door lock control system
• Smart key system (for Entry Function)
• Smart key system (for Start Function)
• Steering lock function

Replacement of ECM*2

Code registration

• Wireless door lock control system
• Engine start

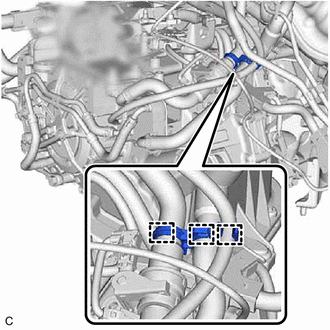

(a) Disengage the 3 clamps to remove the transmission breather clamp.

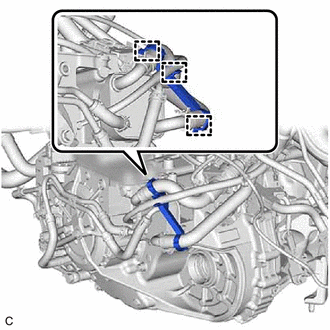

(b) Disengage the 3 clamps to remove the hose clamp.

(c) Disengage the 2 clamps to disconnect the flow shutting valve (No. 1 water by-pass hose) and transmission breather hose from the hose clamp.

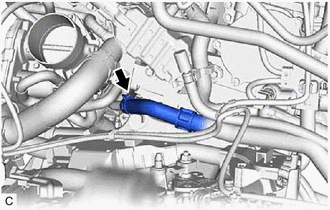

(d) Slide the clip and disconnect the flow shutting valve (No. 1 water by-pass hose) from the water outlet.

HINT:

Use a container to catch any engine coolant which flows out of the flow shutting valve (No. 1 water by-pass hose) and water outlet.

(e) Slide the clip and disconnect the flow shutting valve (No. 1 water by-pass hose) from the transmission oil cooler.

HINT:

Use a container to catch any engine coolant which flows out of the flow shutting valve (No. 1 water by-pass hose) and transmission oil cooler.

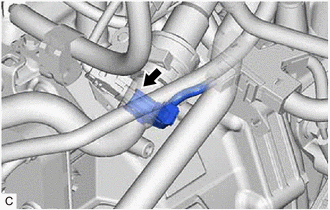

(f) Disconnect the flow shutting valve connector.

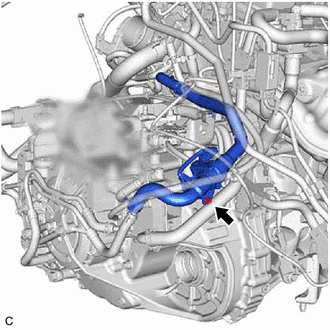

(g) Remove the bolt and flow shutting valve (No. 1 water by-pass hose).
