Toyota Camry (XV70): Removal

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Door / Hatch / Fuel Lid Opener Motor Assembly / Removal

REMOVAL

PROCEDURE

1. REMOVE SPARE WHEEL COVER ASSEMBLY

Click here

2. REMOVE SPARE WHEEL COVER TRAY

Click here

3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

Click here

4. REMOVE REAR FLOOR FINISH PLATE

Click here

5. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH

Click here

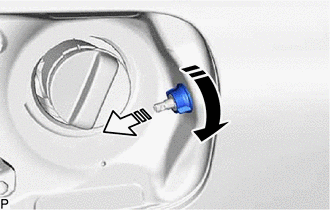

6. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

(a) Turn and remove the fuel filler opening lid lock retainer as indicated by the arrows, in the order shown in the illustration.

Turn in this Direction (1)

Remove in this Direction (2)

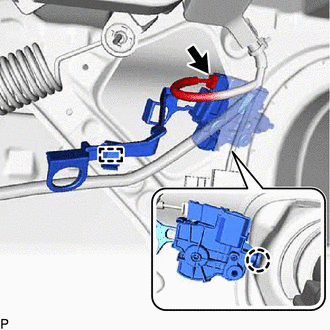

7. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

(a) Disengage the clamp.

(b) Disengage the claw.

(c) Disconnect the connector to remove the fuel lid lock with motor assembly.
