Toyota Camry (XV70): System Diagram
Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / Cruise Control / Road Sign Assist System / System Diagram

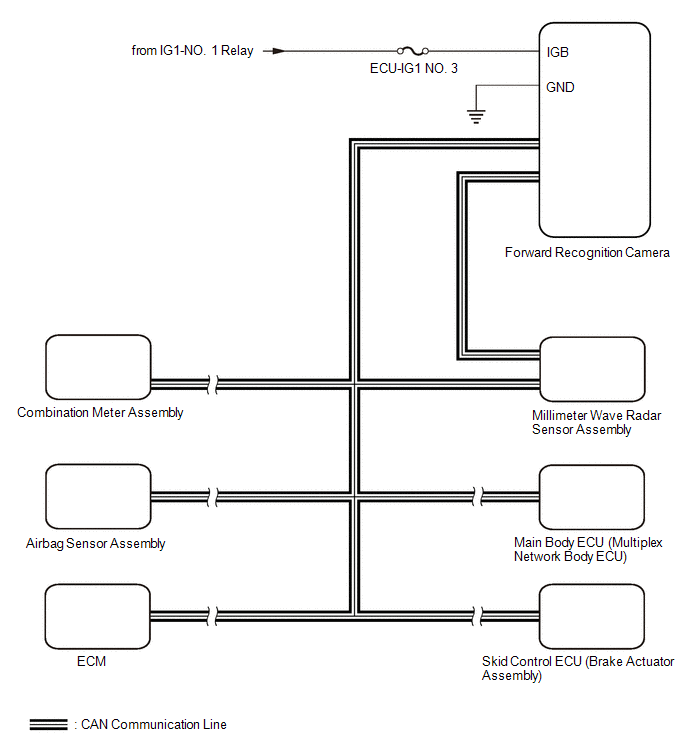

SYSTEM DIAGRAM
