TERMINALS OF ECU
NOTICE:
- DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the Techstream once the inspection has been completed.
- Do not apply excessive force to the forward recognition camera connector.

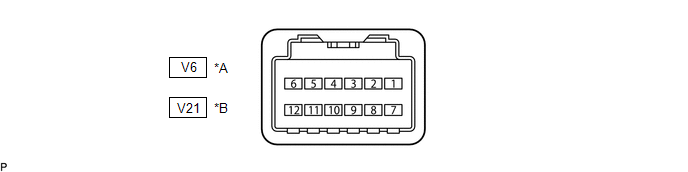

.png)
|
*A | Before Nov. 2021 Production |
*B | From Nov. 2021 Production |
CHECK FORWARD RECOGNITION CAMERA
(a) Measure the voltage and resistance according to the value(s) in the table below.
Before Nov. 2021 Production|
Terminal No. (Symbol) | Wiring Color |
Terminal Description | Condition |
Specified Condition |
|---|---|---|---|---|
|
V6-7 (IGB) - V6-10 (GND) |
LA-P - W-B |
Power source | Ignition switch ON |
11 to 14 V |
|
Ignition switch off | Below 1 V | |||
|
V6-10 (GND) - Body ground |
W-B - Body ground | Ground |
Always | Below 1 Ω |
|
Terminal No. (Symbol) | Wiring Color |
Terminal Description | Condition |
Specified Condition |
|---|---|---|---|---|
|
V21-7 (IGB) - V21-10 (GND) |
LA-P - W-B |
Power source | Ignition switch ON |
11 to 14 V |
|
Ignition switch off | Below 1 V | |||
|
V21-10 (GND) - Body ground |
W-B - Body ground | Ground |
Always | Below 1 Ω |
