Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Door / Hatch / Fuel Lid Opener Motor Assembly / Components

COMPONENTS

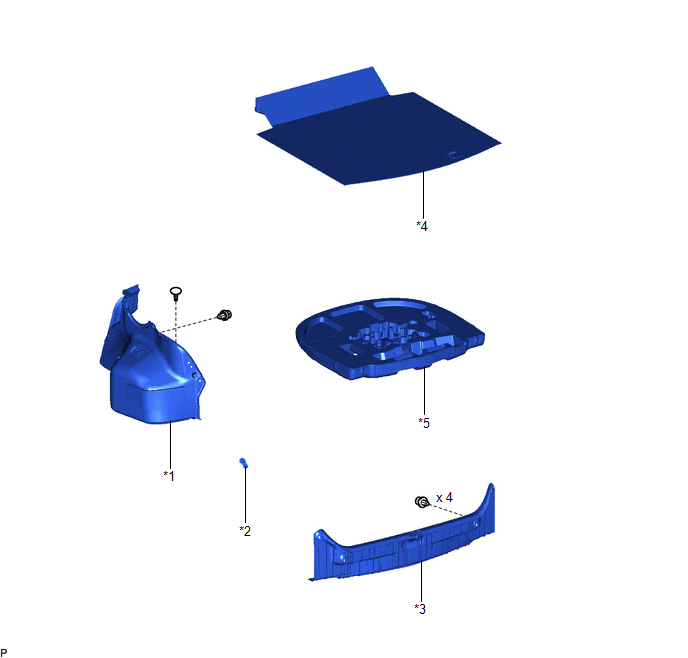

ILLUSTRATION

*1

LUGGAGE COMPARTMENT TRIM INNER COVER LH

*2

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*3

REAR FLOOR FINISH PLATE

*4

SPARE WHEEL COVER ASSEMBLY

*5

SPARE WHEEL COVER TRAY

-

-

ILLUSTRATION

*1

FUEL FILLER OPENING LID LOCK RETAINER

*2

FUEL LID LOCK WITH MOTOR ASSEMBLY

MP grease

-

-

    READ NEXT:

     Removal

    REMOVAL PROCEDURE 1. REMOVE SPARE WHEEL COVER ASSEMBLY Click here 2. REMOVE SPARE WHEEL COVER TRAY Click here 3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Click here 4. REMOVE REAR FLO

     Inspection

    INSPECTION PROCEDURE 1. INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY (a) Check the operation of the fuel lid lock with motor assembly (motor operation). (1) Apply battery voltage to the fuel lid lo

     Installation

    INSTALLATION PROCEDURE 1. INSTALL FUEL LID LOCK WITH MOTOR ASSEMBLY (a) Apply MP grease to the sliding parts of the fuel lid lock with motor assembly. (b) Connect the connector. (c) Engage the c
