Toyota Camry (XV70): Components
COMPONENTS

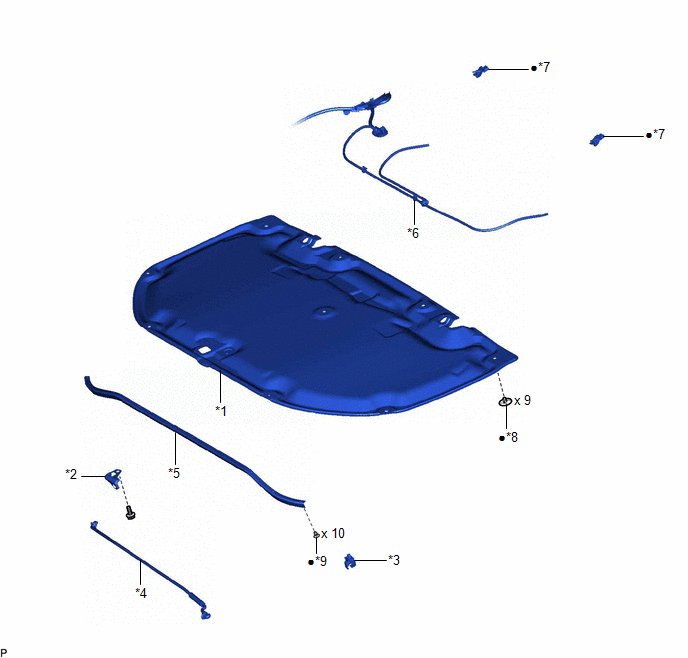

ILLUSTRATION
|
*1 | HOOD INSULATOR |
*2 | HOOD STAY BRACKET RH |
|
*3 | HOOD STAY HOLDER |
*4 | HOOD SUPPORT ASSEMBLY |
|
*5 | HOOD TO RADIATOR SUPPORT SEAL |
*6 | WASHER HOSE ASSEMBLY |
|
*7 | WASHER NOZZLE SUB-ASSEMBLY |
*8 | HOOD INSULATOR CLIP |
|
*9 | HOOD TO RADIATOR SUPPORT SEAL CLIP |
- | - |
|
● | Non-reusable part |
- | - |
