INSTALLATION

PROCEDURE

1. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

(a) Apply adhesive to 2 or 3 threads of the engine oil pressure switch assembly.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

NOTICE:

  • Do not apply adhesive to the oil inlet port of the engine oil pressure switch assembly.
  • Install the engine oil pressure switch assembly within 3 minutes of applying adhesive.

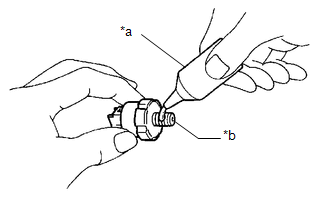

*a

Adhesive 1344

*b

Oil Inlet Port

(b) Using a 24 mm deep socket wrench, install the engine oil pressure switch assembly.

Torque:

15 N·m {153 kgf·cm, 11 ft·lbf}

NOTICE:

Do not start the engine for at least 1 hour after installation.

(c) Connect the engine oil pressure switch assembly connector.

(d) Engage the clamp to connect the wire harness protector.

2. ADD ENGINE OIL

Click here

3. CHECK ENGINE OIL LEVEL

Click here

4. INSPECT FOR OIL LEAK

Click here

5. INSTALL FRONT FENDER APRON SEAL RH

Click here
